4783 CATCH PLATE
Drilled catch plate, made of galvanized cropped steel.
Surface: Polished.
Articulated toggle latch is to be ordered separately.
Compatible articulated toggle latches:
478304001'in Compatible articulated toggle latches: 478204001 ve 478204002.
478306001'in Compatible articulated toggle latches: 478206001, 478206002, 478211001 ve 478211002.

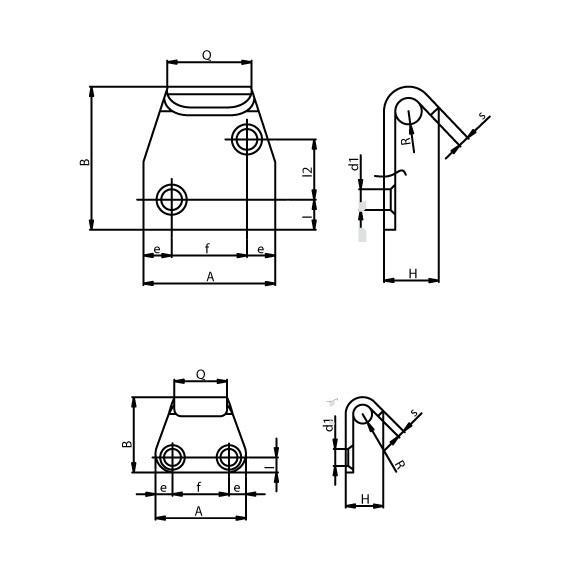

| Code No | H | I | I2 | A | B | Q | e | f | R | d1 | s |
| 478304001 | 10 | 5 | - | 26 | 20 | 14 | 5.5 | 15 | 2.5 | 5.1 | 2 |
| 478306001 | 13.5 | 8.5 | 15.5 | 35 | 39 | 22 | 7.5 | 20 | 3.5 | 6.5 | 2 |
