4727W LOCK (WITH 3mm WING KEY

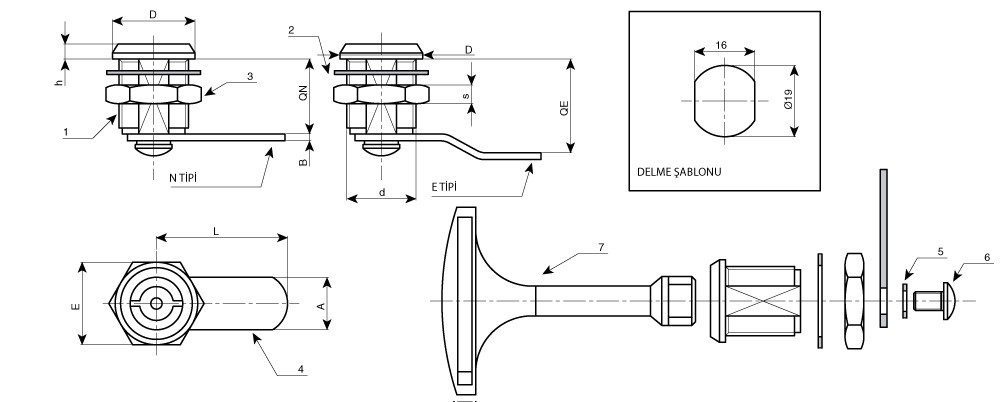

(1) Zamak cast lock body M19 rotor and handle. nickel plated. with 3mm wing key.
(2) Black oxidised, elastic washer. Diameter, 24x1 hole 19,4.
(3) Galvanized steel hexagonal nut M19x1.
(4) Galvanized steel lock handle. (Qn - N type flat - Qe - E type outward)
(5) Conical black oxidised steel elastic washer d.12x1,5.
(6) Galvanized steel Phillips domed bolt M5x8.
Turning diameter: 90°
Opsiyon (7): Nikel kaplama, zamak döküm Key. (Code 472802001).
The key is optional. Order separately.
| Code No | d | L | Qn | Qe | D | h | A | B | E | S | Şekil |
| 472720003 | M19 | 35 | 20 | - | 22 | 4 | 14 | 2.5 | 22 | 5 | N |
| 472722001 | M19 | 35 | - | 22 | 22 | 4 | 14 | 2.5 | 22 | 5 | E |
| 472725103 | M19 | 30 | - | 25 | 22 | 4 | 14 | 2.5 | 22 | 5 | E |
| 472729103 | M19 | 39 | - | 29 | 22 | 4 | 14 | 2.5 | 22 | 5 | E |
| 472737103 | M19 | 35 | - | 37 | 22 | 4 | 14 | 2.5 | 22 | 5 | E |
