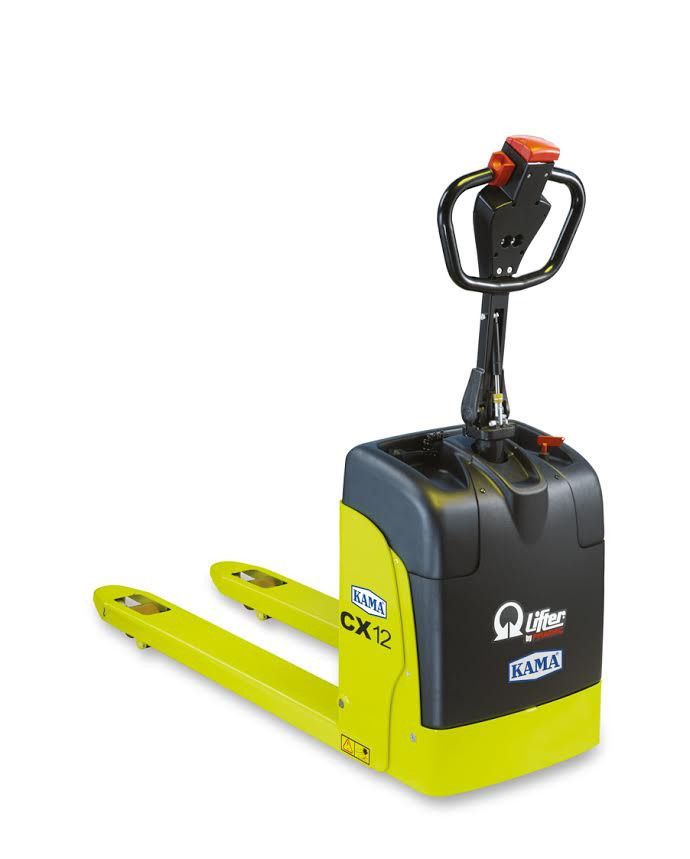

CX

ZUM ANGEBOTSKORB ZUFÜGEN
CX
CX

MODEL

   CX12 S2-S4 CX12 PLUS S2-S4 CX12 GEL S2-S4 CX14 S2-S4 CX14 PLUS S2-S4 CX14 GEL S2-S4

DRIVE

   ELECTRIC ELECTRIC ELECTRIC ELECTRIC ELECTRIC ELECTRIC

OPERATOR TYPE

   PEDESTRIAN PEDESTRIAN PEDESTRIAN PEDESTRIAN PEDESTRIAN PEDESTRIAN

LOAD CAPACITY

 Q(kg) 1200 1200 1200 1400 1400 1400

LOAD CENTRE DISTANCE

 c(mm) 600 600 600 600 600 600

LOAD DISTANCE, CENTRE OF DRIVE AXLE TO FORK

 x(mm) 886 886 886 935 935 935

WHEEL BASE

 y(mm) 1119 1119 1119 1192 1192 1192

WEIGHTS

SERVICE WEIGHT WITH BATTERY (see line 6,5)

 kg 155-157 165-167 160-162 201-207 246-250 248-252

AXLE LOAD LADEN, FRONT/REAR

 kg 431/924-926 441/924-926 436/924-926 562/1041-1045 599/1047-1051 600/1048-1052

AXLE LOAD UNLADEN, FRONT/REAR

 kg 124/31-33 134/31-33 129/31-33 170/33-37 207/39-43 208/40-44

TYRES/CHASSIS

TYRES

   G+P/P G+P/P G+P/P G+P/P G+P/P G+P/P

TYRE SIZE, FRONT (Ø x width)

   186x50 186x50 186x50 250x76 250x76 250x76

TYRE SIZE, REAR (Ø x width)

   82x82-60 82x82-60 82x82-60 82x80-60 82x80-60 82x80-60

SIDE WHEELS (Ø x width)

   75x25 75x25 75x25 100x40 100x40 100x40

WHEELS, NUMBER (x=DRIVEN) FRONT/REAR

   1x+2/2-2/4 1x+2/2-2/4 1x+2/2-2/4 1x+2/2-2/4 1x+2/2-2/4 1x+2/2-2/4

TREAD, FRONT

 b10(mm) 369 369 369 506 506 506

TREAD, REAR

 b11(mm) 371 371 371 375 375 375
DIMENSIONS

LIFT

 h3(mm) 115 115 115 115 115 115

HEIGHT OF TILLER IN DRIVE POSITION MIN/MAX

 h14(mm) 885/1345 885/1345 885/1345 786/1242 786/1242 786/1242

HEIGHT, LOWERED

 h13(mm) 85 85 85 85 85 85

OVERALL LENGTH

 l1(mm) 1510 1510 1510 1650 1650 1650

LENGTH TO FACE OF FORKS

 l2(mm) 360 360 360 500 500 500

OVERALL WIDTH

 b1(mm) 520 520 520 720 720 720

FORK DIMENSIONS

 s/e/l(mm) 55/150/1150 55/150/1150 55/150/1150 50/150/1150 50/150/1150 50/150/1150

DISTANCE BETWEEN FORK ARMS

 b5(mm) 520 520 520 525 525 525

GROUND CLEARANCE, CENTRE OF WHEEL BASE

 m2(mm) 30 30 30 35 35 35

AISLE WIDTH FOR PALLETS 800x1200 LENGTHWISE

 Ast(mm) 1782 1782 1782 1900 1900 1900

TURNING RADIUS

 Wa(mm) 1268 1268 1268 1435 1435 1435

PERFORMANCE DATA

TRAVEL SPEED, LADEN/UNLADEN

 km/h 4,3/4,8 4,3/4,8 4,3/4,8 4,5/4,7 4,5/4,7 4,5/4,7

LIFT SPEED, LADEN/UNLADEN

 m/s 0,03/0,04 0,03/0,04 0,03/0,04 0,02/0,03 0,02/0,03 0,02/0,03

LOWERING SPEED, LADEN/UNLADEN

 m/s 0,05/0,02 0,05/0,02 0,05/0,02 0,04 0,04 0,04

MAX GRADEABILITY, LADEN/UNLADEN

   10/25 10/25 10/25 5/10 5/10 5/10

SERVICE BRAKE



ELECTRIC

ELECTRIC

ELECTRIC

ELECTRIC

ELECTRIC

ELECTRIC

ELECTRIC MOTORS

DRIVE MOTOR POWER

 kW 0,35 0,35 0,35 0,7 0,7 0,7

LIFT MOTOR POWER

 kW 0,4 0,4 0,4 0,4 0,4 0,4

BATTERY VOLTAGE, NOMINAL CAPACITY C20

 V/Ah 24/60 24/60 (45 C5) 24/48 (40 C5) 24/70 (C20) 24/118 24/105

BATTERY WEIGHT

 V/Ah   2x14 2x19 2x16 32 78 80

*G = Rubber, N = Nylon, P = Polyurethane, A = Steel, NE = Nylon extra

SOUND LEVEL AT DRIVER’S EAR

 dB(A) 67 67 67 76 76 76
MODEL     CX12 S2-S4 CX12 S2-S4 CX14 S2-S4

FORK LENGTH

 l(mm) 800 1000 1000

LOAD CENTRE DISTANCE

 c(mm) 400 500 500

WHEELS, NUMBER (x=DRIVEN) FRONT/REAR

   1x+2/2-2/4 1x+2/2-2/4 1x+2/2-2/4

OVERALL LENGTH

 l1(mm) 1160 1360 1500

WHEEL BASE

 y(mm) 769 969 1042

LOAD DISTANCE, CENTRE OF DRIVE AXLE TO FORK

 x(mm) 536 736 785

SERVICE WEIGHT WITH BATTERY (see line 6,5)

 kg 150-152 153-155 199-203

AXLE LOAD LADEN, FRONT/REAR

 kg 333/1017-1019 415/938-940 561/1038-1042

AXLE LOAD UNLADEN, FRONT/REAR

 kg 121/29-31 123/30-32 169/30-34

TURNING RADIUS

 Wa(mm) 918 1118 1285

AISLE WIDTH FOR PALLETS 800x1200 LENGTHWISE

 Ast(mm) 1382 1582 1700
