Antivibrationsfüße
4101 ANTI-VIBRATION MOUNT
Zinc plated steel base.
Two nuts and two bolt with washer for adjustment.
Non-slip pad
Cd: Max. Dynamic load (Kg).
Ce: Max. Static load (Kg).

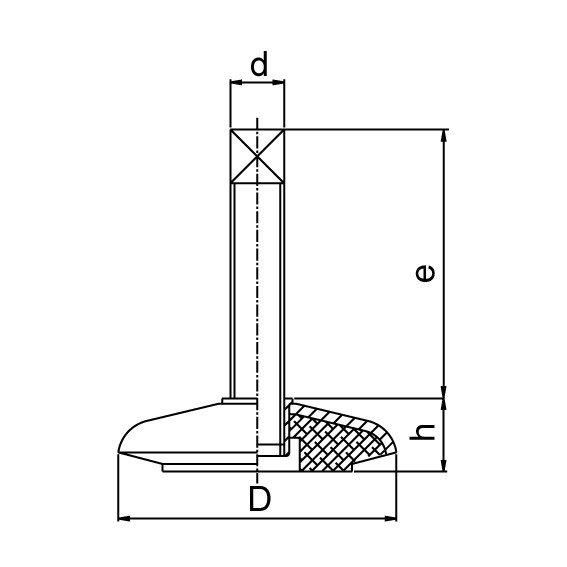

| Code No | D | d | e | h | Cd | CE |
| 410108012 | 80 | M12 | 53 | 27 | 320 | 90 |
| 410111014 | 110 | M14 | 93 | 32 | 550 | 1500 |
| 410114016 | 140 | M16 | 91 | 39 | 750 | 2000 |
| 410120020 | 200 | M20 | 113 | 62 | 1450 | 3600 |
